12V/24V Battery Indicator Charge Status Meter Tri-Color LED lights - Round - Automotive Authority

12V/24V Battery Indicator Charge Status Meter Tri-Color LED lights - Round

Automotive Authority

  • $21.99

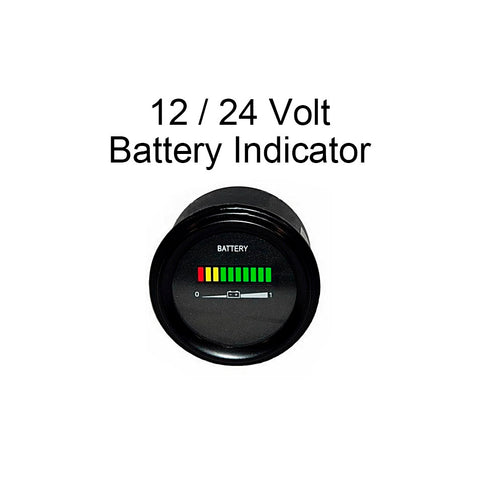

 LED Battery Indicator 12/24V - Round

Never let your electric equipment run out of power again. This battery indicator is designed to monitor the voltage charge on your battery powered equipment.

  • 100% Brand New & High Quality
  • Easy to Follow Pictured Instructions Included
  • Colored LED Indicator Status
  • Color: Black
  • Water Resistant
  • 10 LED Bar Display
  • Operating Voltage: 12/24 Volt

Battery Indicator GIF photo AnimateChargeStatus_zps592283e3.gif

Battery Indicator Levels Explained:
The battery indicator has 10 colored LED's that will display the batteries voltage charge. Only 1 LED will be illuminated at a time to conserve the power draw. When your batteries are fully charged, the far left LED will illuminate green. As the batteries voltage drops from use, the LEDS in the 4 thru 9 position will illuminate. All of the 9th-4th LED's are Green as shown the the flashing graphic above. Once the batteries voltage drops significantly the battery indicator switches to a Yellow LED cautioning there is approximately 30%  of the batteries voltage left,  This should be your warning for low voltage. When the batteries voltage is discharged to around 20% remaining, the 2nd LED from the left will illuminate as a flashing Yellow LED. Finally, hen the battery voltage drops to 10% or less, the 1st and 2nd LED will start to flash Red and Yellow LED.

Dimensions:
Hole cutout needed on dash - 2"

Manufacturer: Automotive Authority
