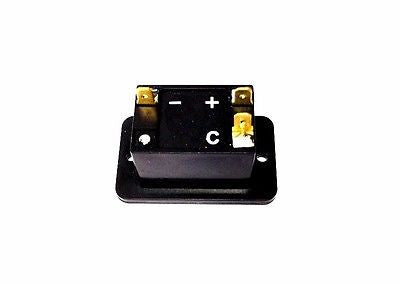

12V 12 Volt Marine Trolling Motor Battery Charge Indicator Meter
Never let your electric equipment run out of power again. This battery indicator is designed to monitor the voltage charge on your battery powered equipment.
- 100% Brand New & High Quality
- Easy to Follow Pictured Instructions Included
- Colored LED Indicator Status
- Color: Black
- Water Resistant
- 10 LED Bar Display
- Operating Voltage: 12/24 Volt
Battery Indicator Levels Explained:
The battery indicator has 10 colored LED's that will display the batteries voltage charge. Only 1 LED will be illuminated at a time to conserve the power draw. When your batteries are fully charged, the far left LED will illuminate green. As the batteries voltage drops from use, the LEDS in the 4 thru 9 position will illuminate. All of the 9th-4th LED's are Green as shown the the flashing graphic above. Once the batteries voltage drops significantly the battery indicator switches to a Yellow LED cautioning there is approximately 30% of the batteries voltage left, This should be your warning for low voltage. When the batteries voltage is discharged to around 20% remaining, the 2nd LED from the left will illuminate as a flashing Yellow LED. Finally, hen the battery voltage drops to 10% or less, the 1st and 2nd LED will start to flash Red and Yellow LED.
Outside Measurements: Width 2 1/16" ; Height 1 1/4"
Hole cutout needed on dash - 1 3/8" by 7/8"
