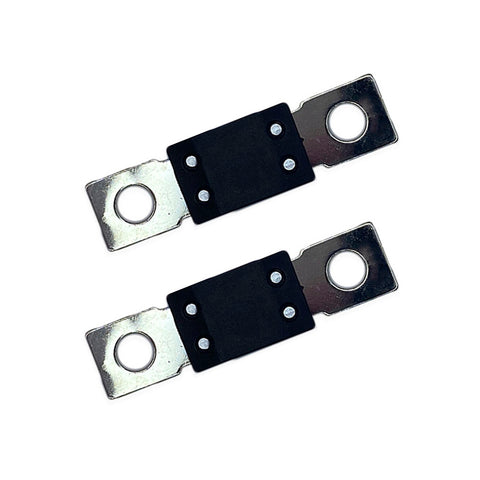

MEGA/AMG Fuse 32V, 298 Series, Time Delay, Bolt Down - Automotive/Marine

Automotive Authority

  • $10.99


Mega Fuse

Brand New Mega Fuse. We have 100's in stock and ready to ship. We also sell the Mega Fuse holders if needed.

  • For Use On Systems Up To 32V, Compatible With 12V & 24V Systems.
  • 298 Series, Time Delay (Slow Blow), Bolt Down MEGA/AMG Fuse
  • Economical Fuses For 60-500 Ampere Circuit Protection
  • Quantity: 2 Fuse

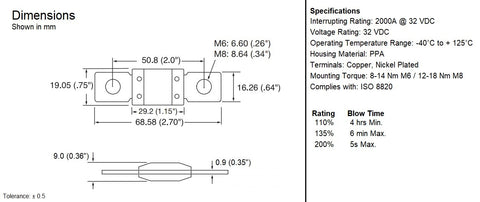

Specifications
Interrupting Rating: 2000A @ 32 VDC
Voltage Rating: 32 VDC
Operating Temperature Range: -40˚C to + 125˚C
Housing Material: PPA
Mounting Torque: 8-14 Nm M6, 12-18 Nm M8
Complies with: ISO 8820

Rating / Blow Time
110% / 4 Hours - Min.

135% / 10 Minutes - Max.
200% / 5 Seconds - Max.
