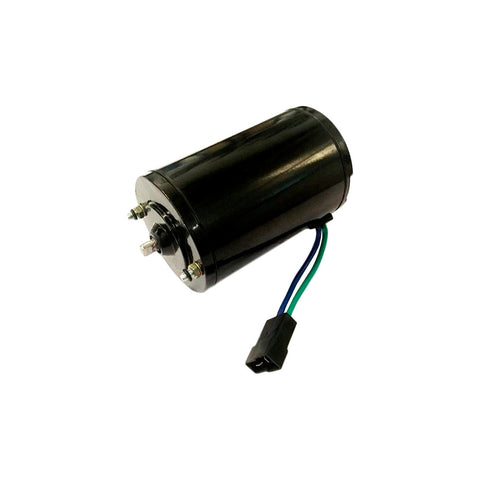

VOLVO PENTA TILT TRIM MOTOR 3586765 3856596 10845 10845N 82-7857 430-22022

Trim/Tilt Motor for Volvo Penta Outboard Motors

Specifications:
Unit Type: Tilt & Trim Motor
Voltage12

Rotation: Reversible
Shaft Outside Diameter: 8 MM
Shaft Specifications: 4 MM Drive Tang
Overall Length: 145 MM / 5.709 IN
Field Housing: 75.7 MM / 2.980 IN
Wiring: 2-Wire Configuration

Replaces these part numbers:
API MARINE: PT406NM-3
ARCO MARINE: 6232
ARROWHEAD: TRM0032
EMP PARTS: 4-6805
J & N: 430-22022
LESTER: 10845
LESTER (OLD): 10819M
VOLVO PENTA: 854525-3
WAI: 10845N, 82-7857

Applications: Volvo Penta Engine - Marine
KAD42A,B,P 1991-1997
KAMD42A,B,P 1991-1997
TAMD30,A,B,C 1983-1986
TAMD31A,B,D,L,M,P,S,X 1985-2004
TAMD40A,B,C 1979-1984
TAMD40A,B,C 1986
TAMD41A 1987-2005
TMD30A,B 1983-1986
TMD31A,B,D,L 1986-1997
TMD40 1976
TMD40 1978-1986
TMD41A,B,D,L 1986-1997
