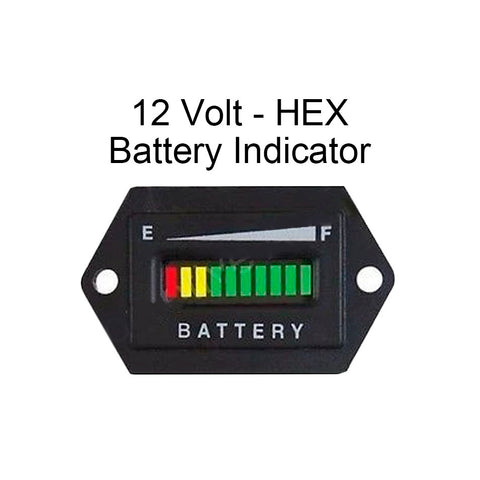

12V 12 Volt Marine Trolling Motor Battery Indicator Meter - HEX

Automotive Authority

  • $18.99


LED Battery Indicator 12V - HEX Shaped
Never let your electric equipment run out of power again. This battery indicator is designed to monitor the voltage charge on your battery powered equipment.
  • 100% Brand New & High Quality
  • Easy to Follow Pictured Instructions Included
  • Colored LED Indicator Status
  • Color: Black
  • Water Resistant
  • 10 LED Bar Display
  • Operating Voltage: 12/24 Volt

Battery Charge GIF photo Battery Charger GIF - Watermarked_zpslhwlfruw.gif

Please note this graphic shows the rectangular meter but this is for the hex shaped meter
Battery Indicator Levels Explained:
The battery indicator has 10 colored LED's that will display the batteries voltage charge. Only 1 LED will be illuminated at a time to conserve the power draw. When your batteries are fully charged, the far right LED will illuminate green. As the batteries voltage drops from use, the LEDS in the 4 thru 9 position will illuminate. All of the 9th-4th LED's are Green as shown the the flashing graphic above. Once the batteries voltage drops significantly the battery indicator switches to a Yellow LED cautioning there is approximately 30%  of the batteries voltage left,  This should be your warning for low voltage. When the batteries voltage is discharged to around 20% remaining, the 2nd LED from the left will illuminate as a flashing Yellow LED. Finally, when the battery voltage drops to 10% or less, the 1st and 2nd LED will start to flash Red and Yellow LED.

Dimensions:
Outside Measurements:  Width 2 1/16"   ;    Height 1 1/4"
Hole cutout needed on dash - 1 3/8" by 7/8"
